M23 9 Pin PA66 Metal Screw Assembly Connector CuZn 500 Cycles

Name: M23 9 Pin PA66 Metal Screw Assembly Connector CuZn 500 Cycles
Brand: RIGOAL
Price: 1 USD

China M23 9 Pin PA66 Metal Screw Assembly Connector CuZn 500 Cycles wholesale

Brand Name : RIGOAL

Model Number : M23 connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pins : 6pin 9pin 12pin 19pin 16pin

Waterproof rate : ip67/68

Insert Material : PA66

Rated Voltage : 150V

Contact Material : Brass, gold plated

Mating cycles : >500 times

Temperature range : -40℃ to +125℃

Contact Now

m23 9pin metal screw assembly connector

Product Description

M23 9 Pin PA66 Metal Screw Assembly Connector CuZn 500 Cycles

M23 waterproof connector was specially developed for harsh operational enviroment; it ensures the operation stability under moisture, vibration and temperature change.

Circular M23 may be utilized in wide-ranging application, such as industrial automation machinery and medical equipment; due to
 the variations in electric current, customized pin configurations are available to the customer. Circular M23 with over molded
 cable type, assembly and pannel type, designed for primarily transferring both power and analog or digital signals; Metallic
 external shield combined with removable internal plastic component and terminals.

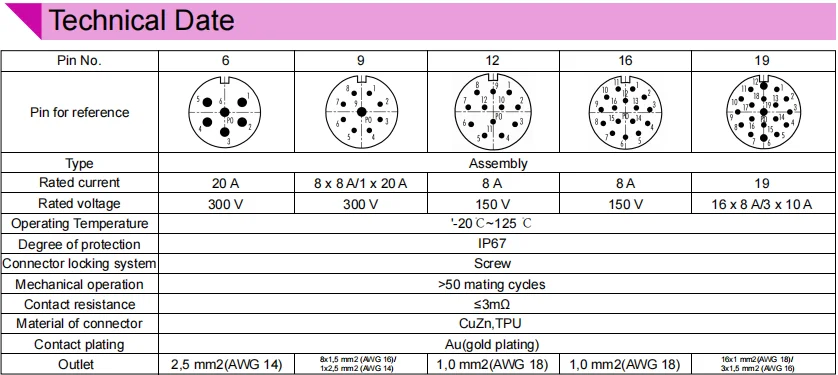

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	RIGOAL
Model Number	M23 connector
Type	ADAPTER
Application	Automotive
Gender	Rubber boot

Product Tags:

PA66 Metal Screw Assembly Connector

M23 Metal Screw Assembly Connector

CuZn Metal Circular Connector

M23 9 Pin PA66 Metal Screw Assembly Connector CuZn 500 Cycles Images
